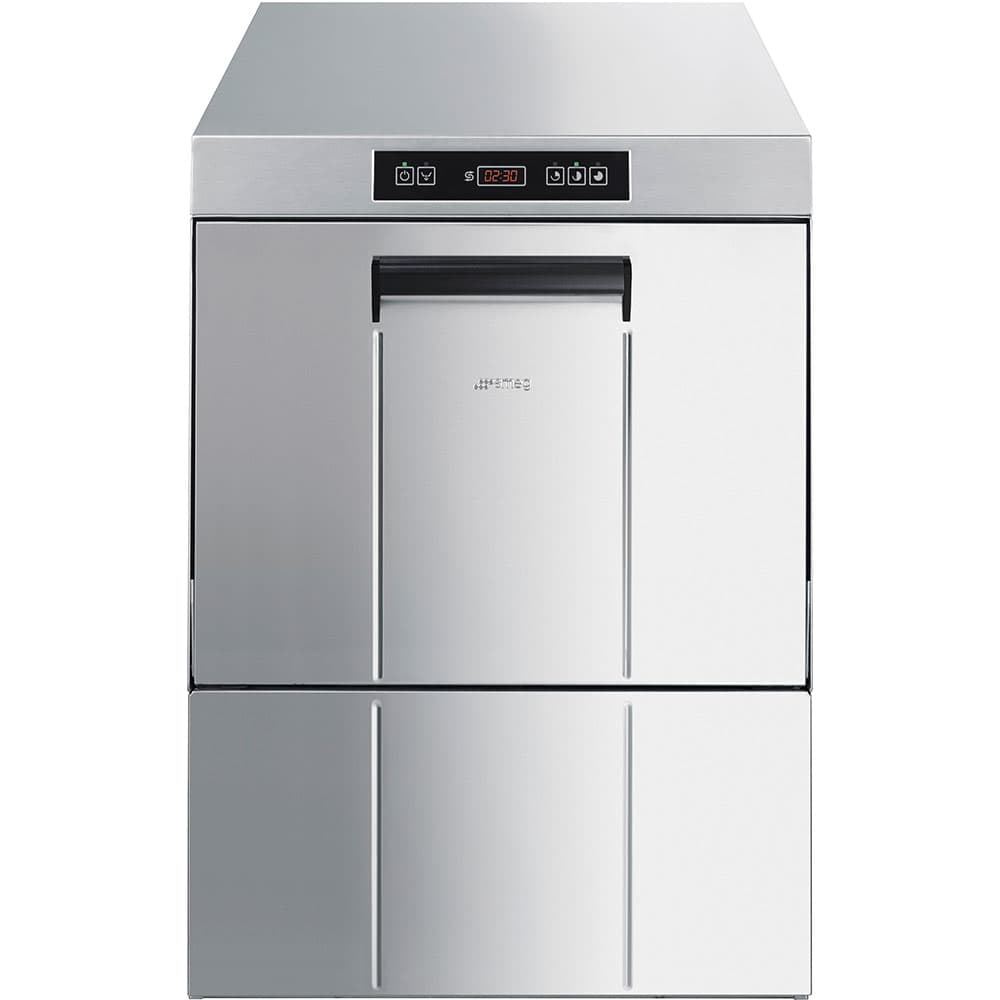

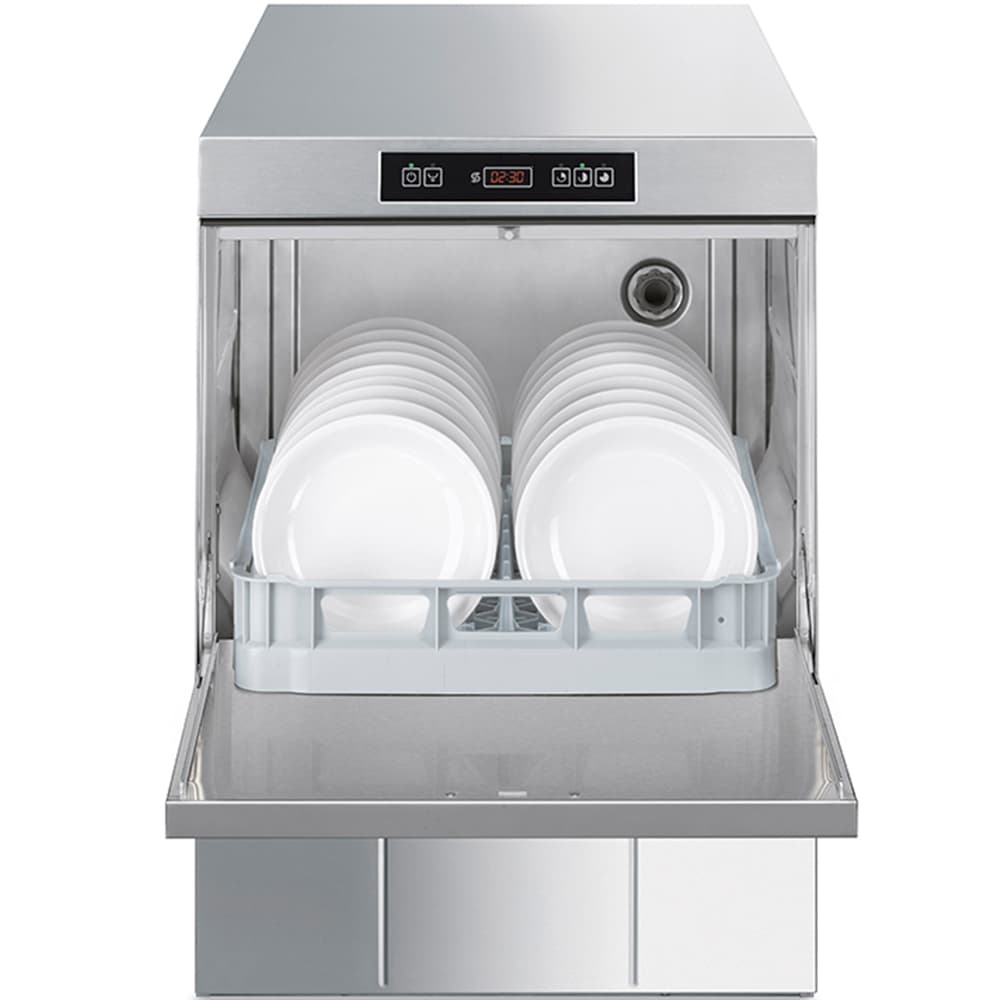

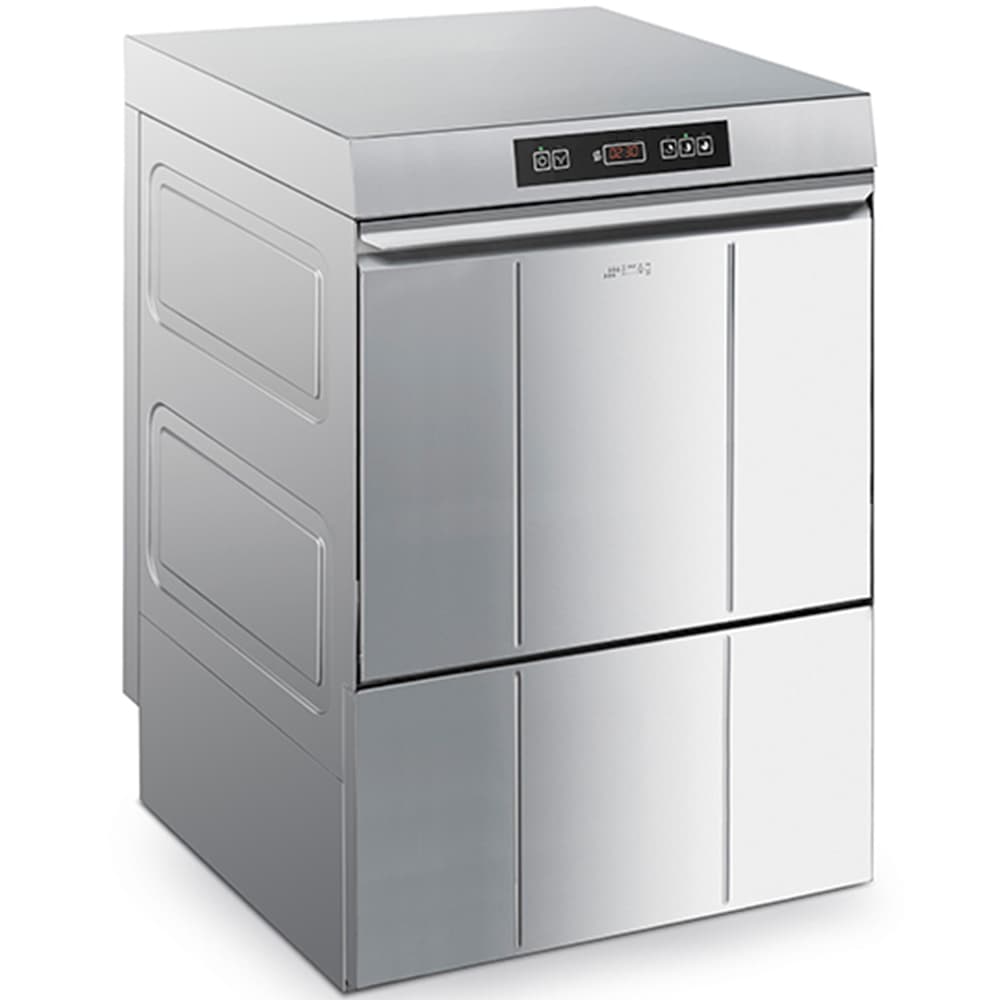

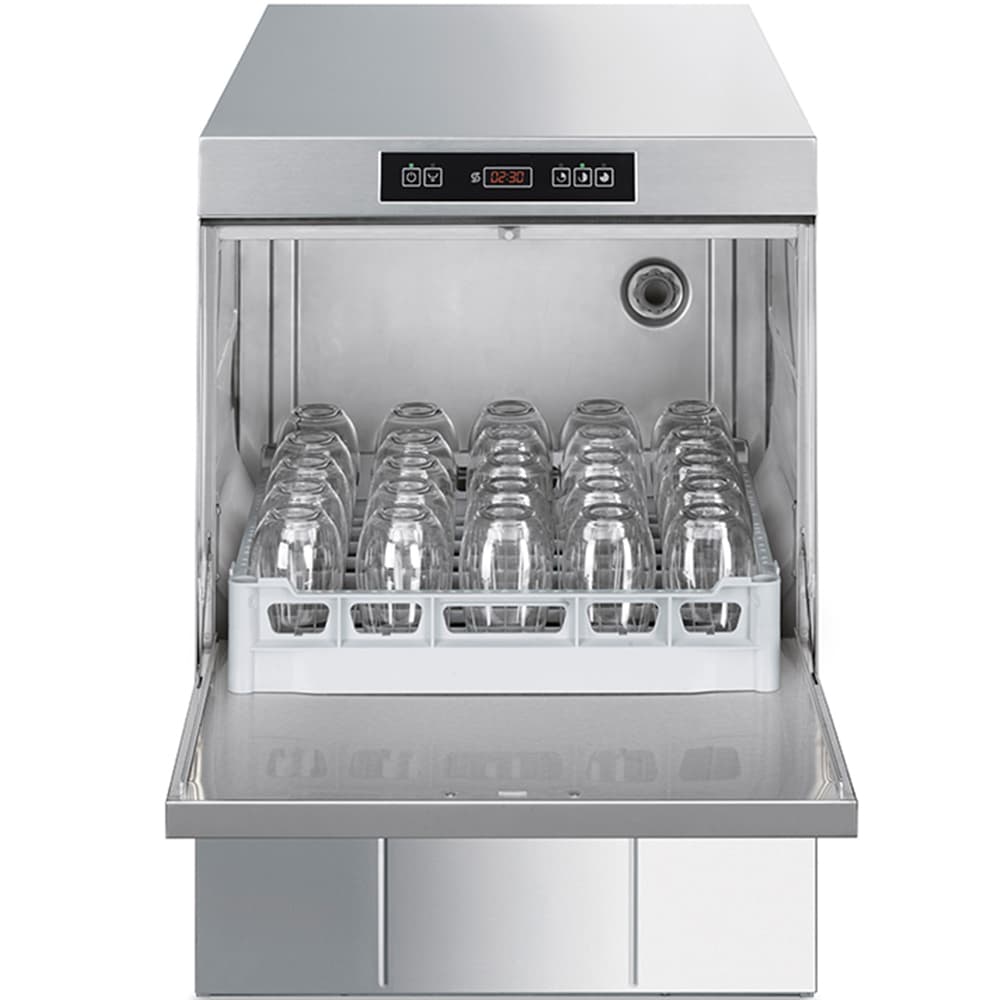

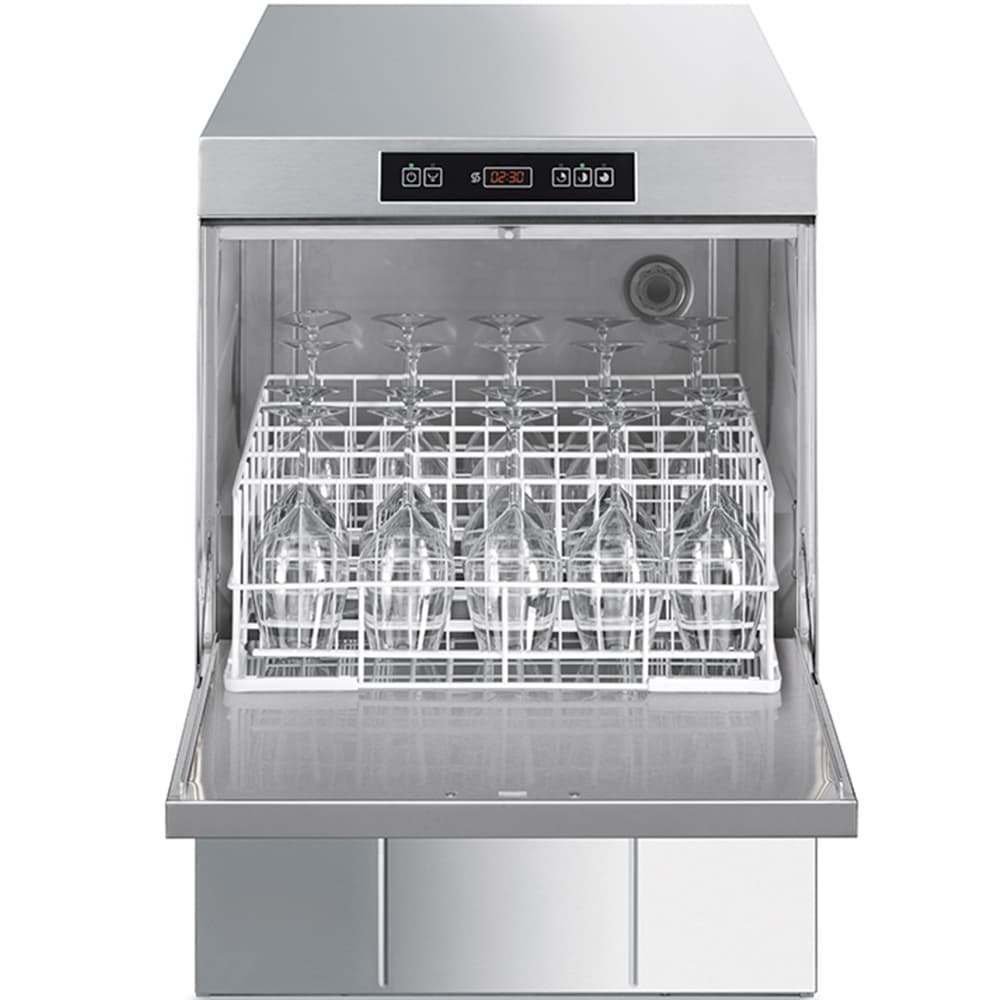

The Smeg UD505D is a powerful front loading commercial dishwasher and glass-washer complete with drain, booster, detergent and rinse aid pumps as standard, H.T.R system and self cleaning night time cycle.
Created to guarantee the best wash results with the lowest power consumption, Smeg professional dishwashers are designed with painstaking care, right down to the smallest details using the latest technology. From the hydraulic circuit to the electronic control panel, the double skinned door & the pressed tank with rounded corners, all innovative features have been included to guarantee optimal wash and rinse results.
Capacity 500 x 500mm basket
Baskets per hour 40, 24 or 15
3 Options 90, 150 or 240 seconds
Integral water softener
Single skinned stainless steel body
Automatic drain pump with partial water exchange tank
Insulated double skinned door with gasket
Thermostop for controlling the rinse water temperature
Self-diagnosis system with fault warning
Wash system, wash pump with 'Soft start' system
Self cleaning cycle available as standard
Detergent and rinse aid dispensers and pump
Water consumption per cycle 3.2 litres

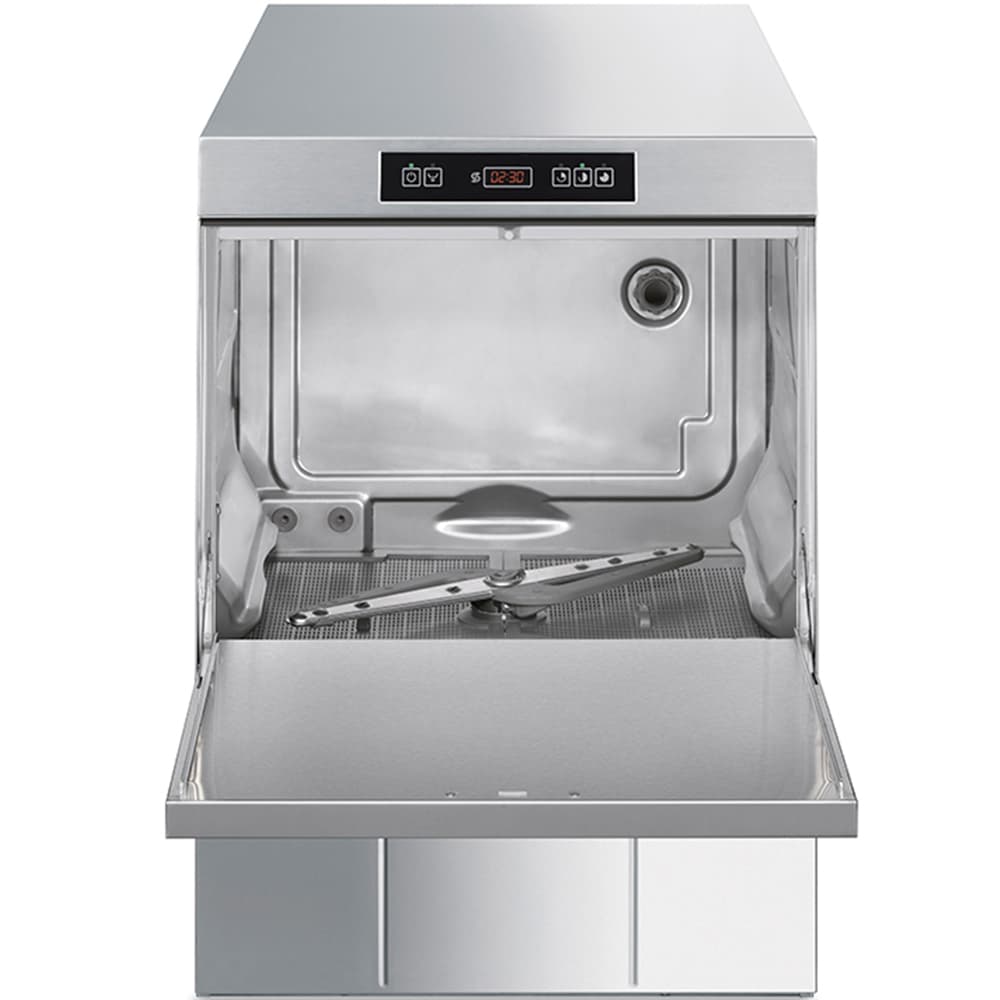

2 wash arms and rinse arms combined
Wash tank 13L, boiler capacity 6L
Weight 55kg, packed 63kg
Wash tank 2kW, wash pump 0.7kW
Electric 400V, 5.7kW, 3N, 3 Phase
Electric 4kW or 5.7kW, 230V, hardwired, single phase
Electric 230V, 2.7kW, UK plug
Electrics switchable on site
Electrical options selectable below
Usable loading height 365mm
H820 x W600 x D600
We have hundreds of these machines installed throughout Ireland our customers love them
